Acuity Brands *2806WT, eldoLED OTi30W, 120-277V Input, 30W, 150mA-1050mA Output Max, 0-10V Dimming, Programmed using FieldSET Programmer Tool
Regular price
$52.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

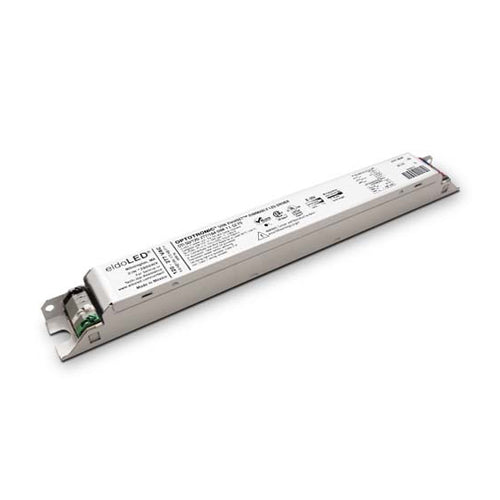

The FieldSET OTi30W is an efficient, dimmable LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi30W is designed for in-field programming and replacement.
Driver Overview
- Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures.
- 30W Output
- 0-10V Dimming with 1% Minimum Dim Level
| Stock Code | *2806WT |
| Family | eldoLED Optotronic Intelligent Driver | FieldSET |
| Part No | FIELDSET OTI 30W UNV 1A0 1DIM DIM-1 FS J10 |
| Ballast Type |
Constant Current, Class 2
|
| Dimmable | Yes |
| Dimensions |
Length 11.02" (280mm) Width 1.15" (29.4mm) Height 1.0" (25.4mm) |
| Input |
Voltage: 120-277Vac
Current: 0.31A@120V, 0.15A@277V
|
| Output |
Voltage: 10-55VDC
Current: 150-1050mA (1mA step), 700mA default
Power: 30W
|
| Bulb Type | LED |
| IP Rating | IP20 |
| Operates | Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures. |
| Power Factor | >=0.90 |
| Start Temperature | -30°C- 50°C |
| Fixture Type | Indoor Fixture |
| UL Listed | cULus, CSA, FCC Part 15 Class A |
