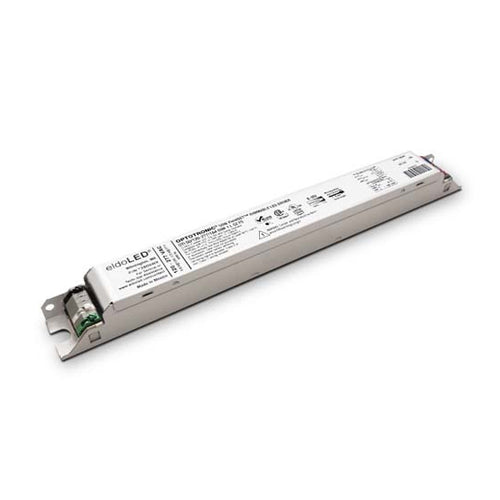

Acuity Brands *2806X3, eldoLED OTi85W, 120-277V Input, 85W, 700mA-2300mA Output Max, 0-10V Dimming, Programmed using FieldSET Programmer Tool
Regular price
$70.56
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FieldSET OTi85W is an efficient, dimmable, linear LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi85W is designed for in-field programming and replacement
Driver Overview
- Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures.
- 85W Output
- 0-10V Dimming with 1% Minimum Dim Level
| Stock Code | *2806X3 |
| Family | eldoLED Optotronic Intelligent Driver | FieldSET |
| Part No | FIELDSET OTI 85W UNV 2A3 1DIM DIM-1 FS J10 |
| Ballast Type | Constant Current |
| Dimmable | Yes |
| Dimensions |
Length 11.02" (280mm) Width 1.15" (29.4mm Height 1.0" (25.4mm) |
| Input |
Voltage: 120-277Vac
Current: 0.83A@120V, 0.36A@277V
|
| Output |
Voltage: 10-55VDC
Current: 700mA - 2300mA
Power: 85W
|
| Bulb Type | LED |
| IP Rating | IP20 |
| Operates | Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures. |
| Power Factor | >=0.90 |
| Start Temperature | -30°C- 50°C |
| Fixture Type | Indoor Fixture |
| UL Listed | cULus, CSA, FCC Part 15 Class A |
| Memo | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
