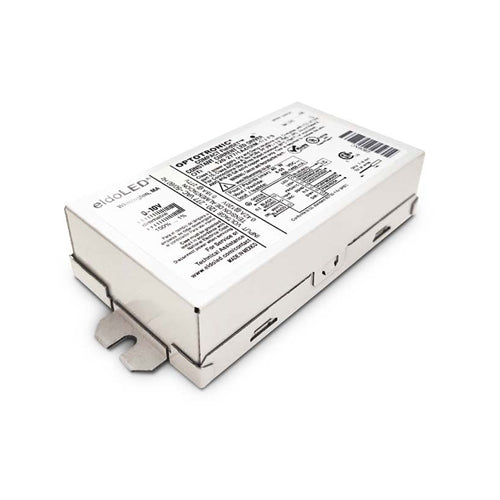

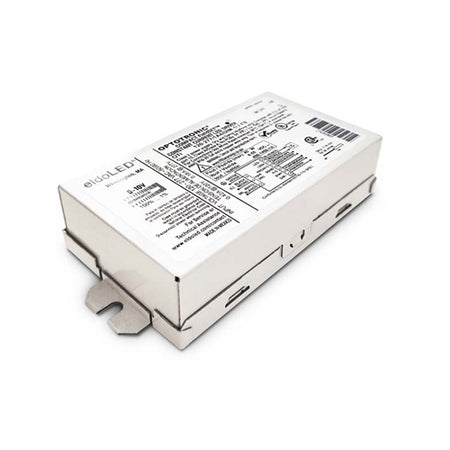

Acuity Brands *2806X6, eldoLED OTi25W, 120-277V Input, 25W, 150mA-1250mA Output Max, 0-10V Dimming, J-Housing with PEM Studs, Programmed using FieldSET Programmer Tool
Regular price
$50.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FieldSET OTi25W is an efficient, dimmable, compact LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi25W is designed for in-field programming and replacement.
Driver Overview
- Intended for use in LED fixtures including Indoor, Downlight fixtures.
- 25W Output
- 0-10V Dimming with 1% Minimum Dim Level
| Stock Code | *2806X6 |
| Family | eldoLED Optotronic Intelligent Driver | FieldSET |
| Part No | FIELDSET OTI 25W UNV 1A2 1DIM J-HOUSING FS J20 |
| Ballast Type |
Constant Current
|
| Dimmable | Yes |

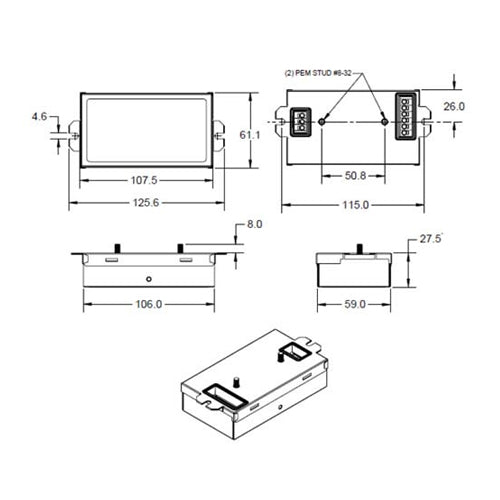

| Dimensions |
Length 4.2" (106mm) Width 2.4" (61.1mm) Height 1.2" (27.5mm) |
| Input |
Voltage: 120-277Vac
Current: 0.28A@120V, 0.12A@277V
|
| Output |
Voltage: 8-55VDC
Current: 150mA - 1250mA; 500mA default
Power: 25W
|
| Bulb Type | LED |
| IP Rating | IP20 |
| Mounting | Mounting Length (outside) 4.5" (115.0mm), Mounting Length (inside) 2.0" (50.8mm), Bottom Feed Wiring with 2 Mounting Studs |
| Operates | Intended for use in LED fixtures including Indoor, Downlight fixtures. |
| Power Factor | >=0.90 |
| Start Temperature | -30°C- 50°C |
| Fixture Type | Indoor Fixture |
| UL Listed | cULus, CSA, FCC Part 15 Class A |
