Acuity Brands *2806X9, eldoLED OTi40W, 120-277V Input, 40W, 400mA-1400mA Output Max, 0-10V Dimming, Programmed using FieldSET Programmer Tool
Regular price
$50.40
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

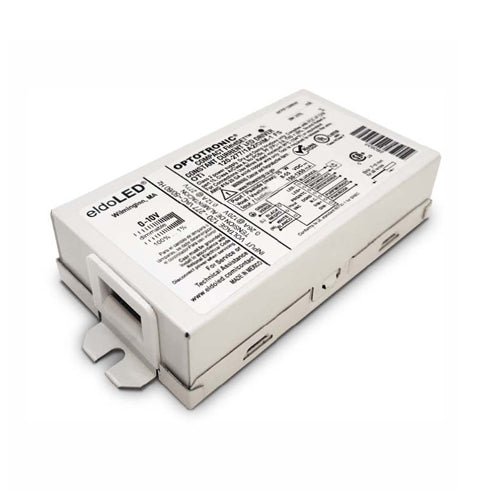

The FieldSET OTi40W is an efficient, dimmable, compact LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi40W is ideal for in-field programming and replacement.
Driver Overview
- Intended for use in LED fixtures including Indoor, Downlight fixtures.
- 40W Output
- 0-10V Dimming with 1% Minimum Dim Level
| Stock Code | *2806X9 |
| Family | eldoLED Optotronic Intelligent Driver | FieldSET |
| Part No | FIELDSET OTI 40W UNV 1A4 1DIM FS J20 |
| Ballast Type | Constant Current |
| Dimmable | Yes |

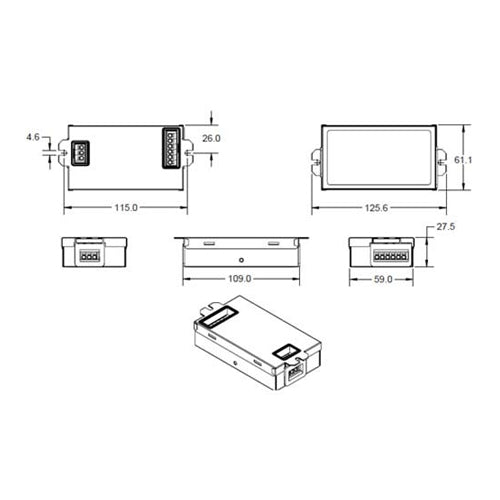

| Dimensions |
Length 4.3" (109mm) Width 2.4" (61.1mm) Height 1.2" (27.5mm) |
| Input |
Voltage: 120-277Vac
Current: 0.41A@120V, 0.18A@277V
|
| Output |
Voltage: 8-55VDC
Current: 400-1400mA (1mA step), 700mA default
Power: 40W
|
| Bulb Type | LED |
| IP Rating | IP20 |
| Mounting | Mounting Length 4.5" (115mm) |
| Operates | Intended for use in LED fixtures including Indoor, Downlight fixtures. |
| Power Factor | >=0.90 |
| Start Temperature | -30°C- 50°C |
| Fixture Type | Indoor Fixture |
| UL Listed | cULus, CSA, FCC Part 15 Class A |
| Memo | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
