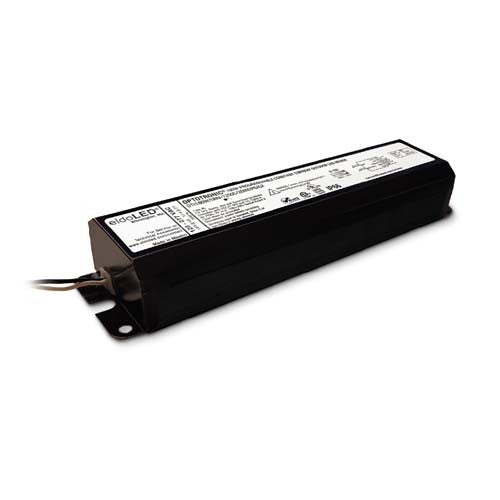

Acuity Brands *281L58, eldoLED OTi180W, 120-277V Input, 180W, 600mA-1250mA Output Max, 0-10V Dimming + Astro Dim, IP66, Programmed using FieldSET Programmer Tool
Regular price
$100.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FieldSET OTi180W is an efficient, dimmable, linear LED driver for outdoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi180W is designed for in-field programming and replacement.
Driver Overview
- Intended for use in LED fixtures including Industrial, Highbay, Outdoor, and Cobra-head fixtures.
- 180W Output
- 0-10V Dimming with 5% Minimum Dim Level
- IP66 Rated
| Stock Code | *281L58 |
| Family |
eldoLED Optotronic Intelligent Driver | FieldSET
|
| Part No | FIELDSET OTI 180W UNV 1250C 2DIM P6 FS J10 |
| Ballast Type |
Constant Current
|
| Dimmable | Yes |
| Dimensions |
Length 6.61" (168mm) Width 2.36" (59.9mm) Height 1.5" (38.1mm) |
| Input |
Voltage: 120-277Vac
Current: 1.65A@120V, 0.71A@277V
|
| Output |
Voltage: 70-210VDC
Current: 600-1250mA; 1250mA default
Power: 180W
|
| Bulb Type | LED |
| IP Rating | IP66 |
| Mounting | Mounting Length 6.0" (152.4mm), Mounting Slot Width 0.28" (7mm) |
| Operates | Mounting Length 6.0" (152.4mm), Mounting Slot Width 0.28" (7mm) |
| Power Factor | >0.95% |
| Start Temperature | -40ºC-55ºC |
| UL Listed | ULus, CSA, FCC Part 15 Class A |
| Cross Refefence | This item was auto-converted from FIELDSET OTI 180W UNV 1250C 2DIM P6 FS J10 |
