Home » Acuity Brands 57996, OSRAM OTi25W, 347VAC Input, 25W, 150mA-1250mA Output Max, 0-10V Dimming, with Optional Auxiliary Output
Acuity Brands

Acuity Brands 57996, OSRAM OTi25W, 347VAC Input, 25W, 150mA-1250mA Output Max, 0-10V Dimming, with Optional Auxiliary Output

In stock
SKU: 57996
$59.99
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

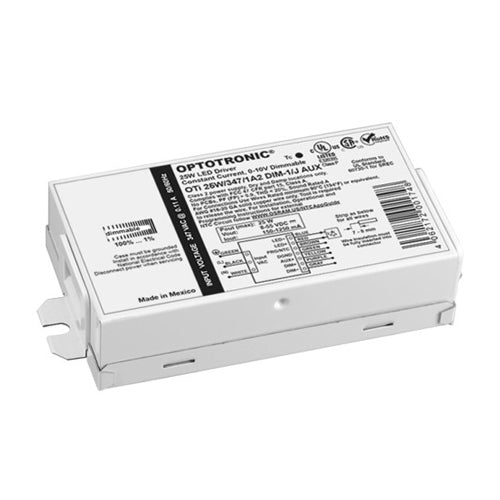

The FieldSET OTi25W is an efficient, dimmable, compact LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi25W is designed for in-field programming and replacement.

Stock Code 57996
Family eldoLED Optotronic Intelligent Driver | FieldSET
Part No eldoLED Optotronic OTi25W/347/1A2 DIM-1 AUX
Ballast Type Constant Current
Dimmable Yes

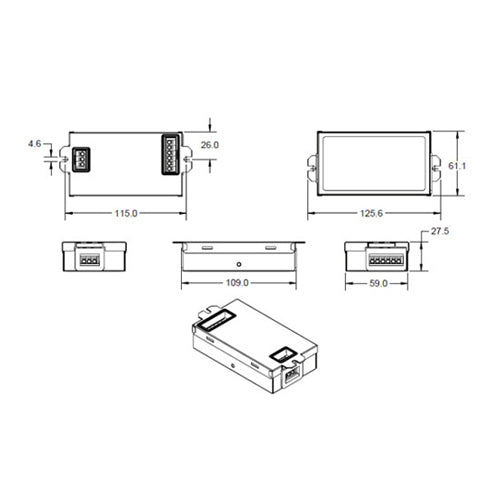

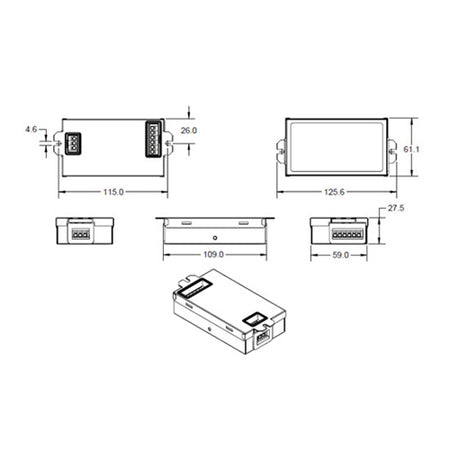

Dimensions Length       4.2" (125.6mm)
Width        2.4" (61.1mm)
Height       1.2" (27.5mm)
Input
Voltage: 347Vac
Current: 0.11A@347V
Output
Voltage: 18-55VDC
Current: 150-1250mA (1mA step), 500mA default
Power:   25W
Bulb Type LED
IP Rating IP20
Mounting Mounting Length 4.5” (115mm)
Operates Intended for use in LED fixtures including Indoor, Downlight fixtures.
Power Factor >=0.90
Start Temperature -40°C- 50°C
Fixture Type Indoor/Outdoor
UL Listed cULus, CSA, FCC Part 15 Class A
Cross Refefence *2743XS (57996) (1%, F-type, AUX)
