Acuity Brands ILB CP05 A M5, Constant Power LED Emergency Driver, 120-277VAC, 5 Watts Output, Dual Flexible, Nickel-Cadmium Battery
Regular price
$254.72
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

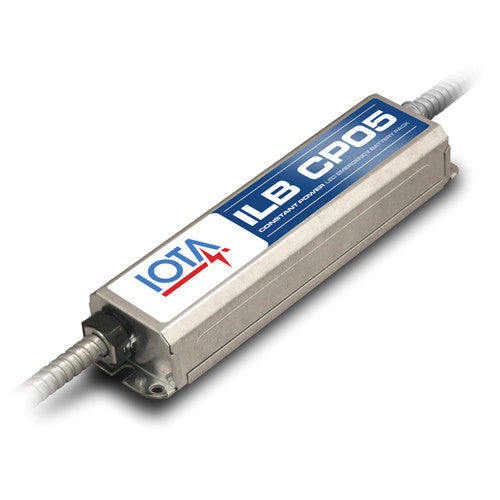

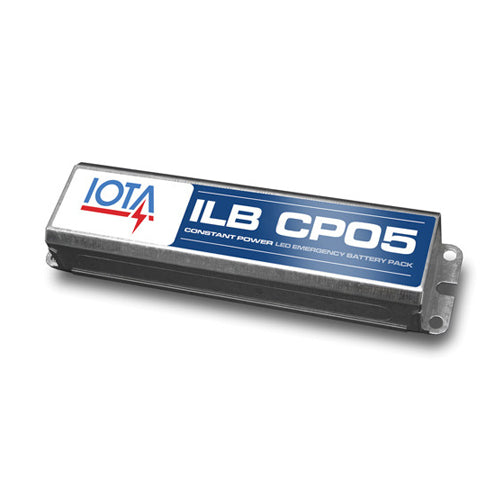

The ILB CP05 from IOTA is a UL Listed and Classified LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP05 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The ILB CP05 will operate an LED array load at 5 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILB CP05 maintains the output wattage to the LED array resulting in nondiminishing illumination for the entire runtime.
| Stock Code | ILB CP05 A M5 |
| Length | 9.5'' |
| Width | 2.375'' |
| Height | 1.5'' |
| Voltage | 120-277VAC, 50/60Hz |
| Bulb Type | LED |
| Output Voltage | 10-60V |
| Output Current | 0.5A - 0.08A |
| Output Power | 5 Watts (constant) |
| Power Factor | ≥ 0.9 |
| Start Temp. | 32°F (0°C)-131°F (55°C) |
| THD | < 20% |
| Mounting Length | 9'' |
| UL Listed | cULus, RoHS Compliant |
| Warranty | 5-Year |
