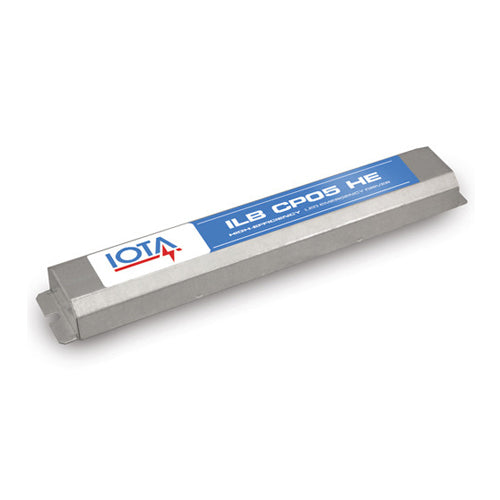

Acuity Brands ILB CP05 HE A M5, Constant Power High-Efficiency LED Emergency Driver, 120-277VAC, 5 Watts Output, Dual Flexible, Nickel-Cadmium Battery
Regular price
$278.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ILB CP05 HE from IOTA Engineering is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP05 HE switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in different mounting configurations for individual fixture requirements. The ILB CP05 HE will operate an LED array load at 5 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILB CP05 HE maintains the output wattage to the LED array, providing consistent illumination for the entire emergency runtime. The ILB CP05 HE features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
| Stock Code | ILB CP05 HE A M5 |
| Length | 14.95'' |
| Width | 2.2'' |
| Height | 1.375'' |
| Voltage | 120-277VAC, 50/60Hz |
| Bulb Type | LED |
| Output Voltage | 10-60V |
| Output Current | 0.5A - 0.08A |
| Output Power | 5 Watts (constant) |
| Power Factor | ≥ 0.95 at 120VAC |
| Start Temp. | 32°F (0°C)-131°F (55°C) |
| THD | < 10% (@ full charge) |
| Mounting Length | 14.5'' |
| UL Listed | cULus, RoHS Compliant |
| Warranty | 5-Year |
