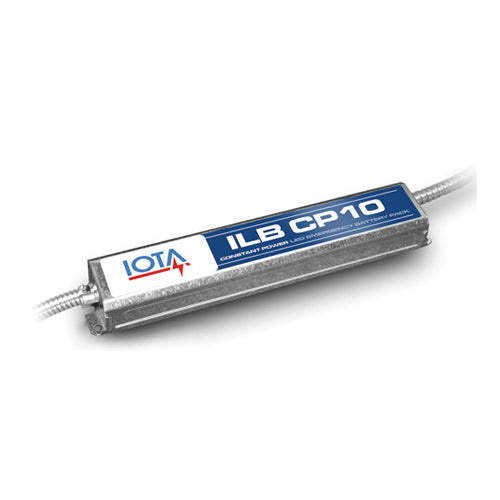

Acuity Brands ILB CP10 A M5, Constant Power LED Emergency Driver, 120-277VAC, 10 Watts Output, Dual Flexible, Nickel-Cadmium Battery
Regular price
$302.32
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ILB CP10 from IOTA is a UL Listed and Classified LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP10 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The ILB CP10 will operate an LED array load at 10 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILB CP10 maintains the output wattage to the LED array even as the system voltage diminishes.
| Stock Code | ILB CP10 A M5 |
| Length | 13.3'' |
| Width | 2.375'' |
| Height | 1.5'' |
| Voltage | 120-277VAC, 50/60Hz |
| Bulb Type | LED |
| Output Voltage | 10-60V |
| Output Current | 1.0A - 0.16A |
| Output Power | 10 Watts (constant) |
| Power Factor | ≥ 0.9 |
| Start Temp. | 32°F (0°C)-131°F (55°C) |
| THD | < 20% |
| Mounting Length | 12.75'' |
| UL Listed | cULus, RoHS Compliant |
| Warranty | 5-Year |
