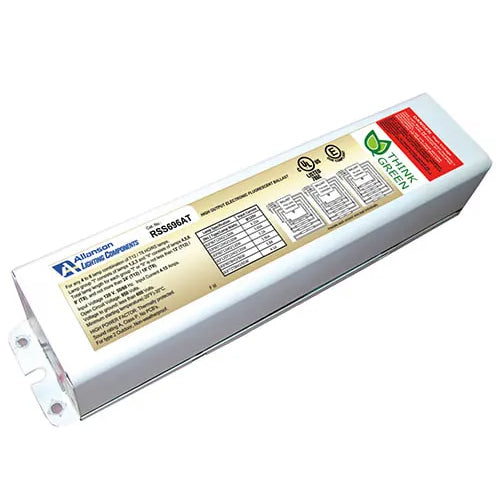

Allanson ALBRSS696AT,RSS Series Magnetic Sign Ballast, For use with T12 HO, T8 HO, and Slimline Lamps 120 Volts, 50/60Hz, 4 to 6 Lamps

In stock
SKU: RSS696AT
$331.07
Rated voltage
No. of Lamps

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Allanson RSS Fluorescent Sign Ballasts, 120V Input, 4 to 6 Lamp operation with total lamp footage of 9' minimum and 18' maximum for T8HO or 12' minimum and 24' maximum for T12HO, Rapid Start Ballast.

For 800mA T12/HO Lamps
  For 800mA T8/HO Lamps
No. of Lamps
4 to 6
4 to 6
Lamp Circuits
Circuit I (lamps 1,2,3)
Circuit II (lamps 4,5,6 )
Circuit I (lamps 1,2,3)
Circuit II (lamps 4,5,6 )
Footage
12ft to 24ft
 9ft to 18ft
Input Voltage
120V
 120V
Max Input Amps
4.15A
 4.10A
Max Input Watts
490W
478W
Open Circuit Voltage
950
950
Wiring  Diagram
6-8
6-8
