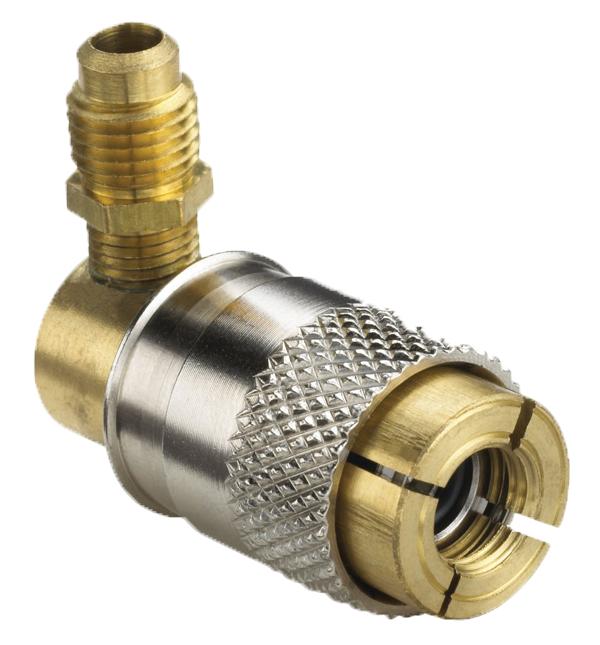

Alltemp 02-CM-SNAP, SnapMate Service Connector
Regular price
$718.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The SnapMate service connectors are designed to provide quick connections to CoreMax Valve Cores as well as standard access valves. The Collets grip on the threads and are specifically designed for the Service Industry by providing quick and easy connections to all 7/16-20, 45˚ flare access valves. Used by HVAC service technicians to evacuate and charge refrigerant during field servicing.
- Connection Method : Sleeve Actuated
- Pressure Rating: 625 (43.0)
- Termination : -4 (7/16-20) 45° (Male)
- Brass collet grips and hardened steel sleeve
- For pressures up to 625 psi
- 7/16-12, 45º Flare termination safe use of pressurized media in sealing, testing and filling requires thorough understanding of Fastest Connectors
- Connectors are designed to mate with a specific application
- Verify application prior to pressurizing or processing
- A secondary restraint or operator protection is recommended for all pressure applications
- Use only in a safe environment. Connectors are NOT designed for permanent connections and are temporary connections only
- DO NOT EXCEED pressure rating as marked on connector or corresponding literature
