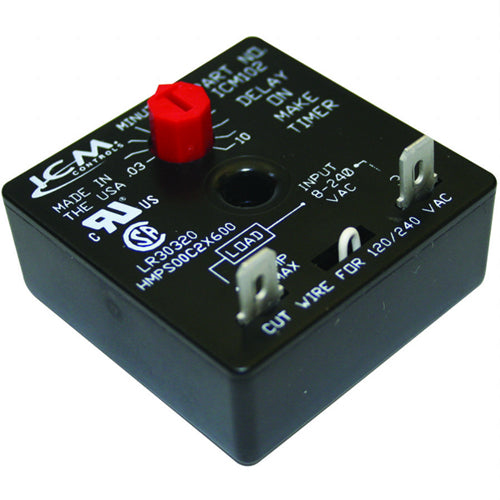

Alltemp 24-ICM102, Delay on Make Timer, 18-240 VAC, 50/60 Hz, Adjustable Delay 0.03-10 Minutes
Regular price
$64.80
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
- Universal voltage operation
- Higher 1.5 amp power rating
- Knob-adjustable time delays
- Works with anticipator-type thermostats
- One model replaces many in field
- Simple 2-wire hookup
| Voltage | 18-240 VAC |
| Frequency | 50/60 Hz |
| Output Ratings | 1.5 amps, 15 amp inrush, 40 mA holding current |
| Time Delay | 0.03-10 Minutes (1.8-600 Seconds) |
| Voltage Drop | 2.5 V @ 1.5 amps |
| Dimensions | 2.00'' x 2.00'' x 1.25'' |
| Certifications | CSA, cURus |
