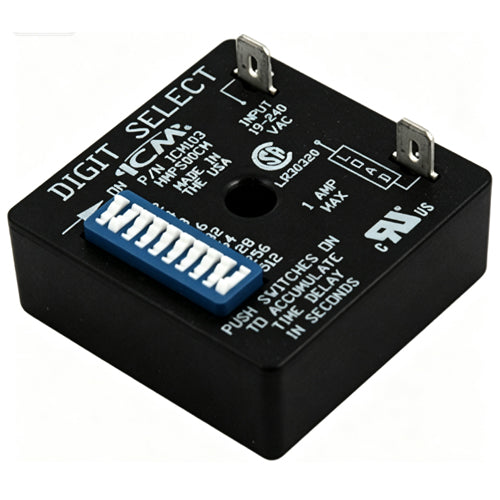

Alltemp 24-ICM103, Delay on Make Timer, 18-240 VAC, 50/60 Hz, Switch Settable Time Delay 1-1023 Seconds
Regular price
$82.72
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
- Highly precise digital timing
- Switch-settable time delays
- Ideal for ice machine applications
- Universal voltage operation
- Repeat accuracy .5% over voltage and temperature range
| Voltage | 18-240 VAC |
| Frequency | 50/60 Hz |
| Output Ratings | 1.0 amp, 10 amp inrus, 40 mA holding current |
| Time Delay | 1-1,023 seconds, switch settable in 1-second increments |
| Voltage Drop | 2.5 V @ 1 amp |
| Dimensions | 2.00'' x 2.00'' x 1.25'' |
| Certifications | CSA, cURus |
