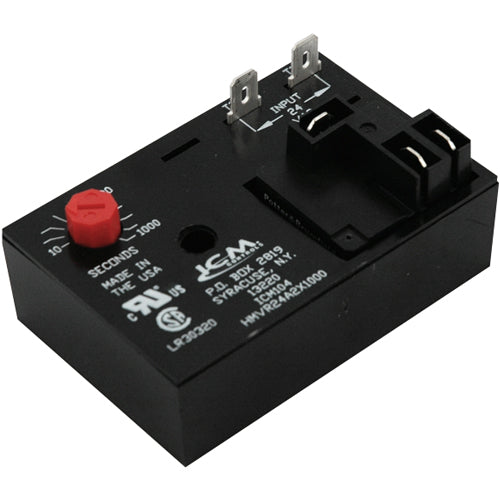

Alltemp 24-ICM104, Delay on Make Timer, 18-30 VAC, 50/60 Hz, SPDT Output, Knob-Adjustable Time Delay 10-1000 Seconds
Regular price
$150.64
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
- Highly precise digital circuitry
- High power, SPDT relay output
- Input to output isolation
- Works with anticipator-type thermostats
- Repeat accuracy .5% over voltage and temperature range
- Rugged, compact package
| Voltage | 18-30 VAC |
| Frequency | 50/60 Hz |
| Output Ratings | SPDT 1 Form C N.O.: 20 amps @ 240 VAC N.C.: 10 amps @ 240 VAC |
| Motor Load Rating | @ 120VAC: N.O., 2 HP, N.C., 1/2 HP @ 240VAC: N.O., 2 HP, N.C., 1/2 HP |
| Time Delay | 10-1,000 Seconds Adjustable |
| Voltage Drop | 2.5 V @ 1 amp |
| Dimensions | 2.00'' x 3.00'' x 1.25'' |
| Certifications | CSA, cURus |
