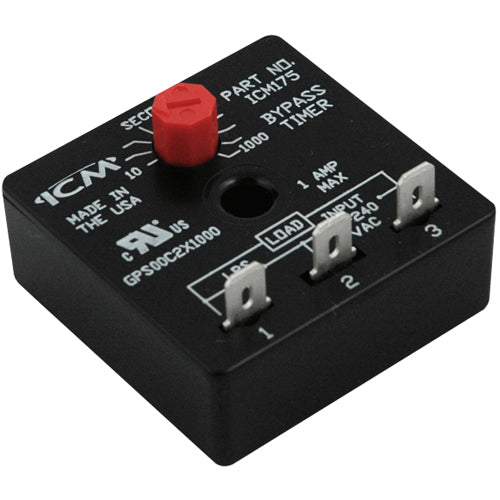

Alltemp 24-ICM175, Bypass Timer, 18-240 VAC, 50/60 Hz, Knob-Adjustable Time Delay 10-1000 Seconds
Regular price
$66.70
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Designed to bypass a control or device during startup. Typically used to bypass a low pressure switch during compressor heat pump startup or to bypass an oil pressure switch upon startup. Helps to eliminate nuisance lockouts. With power applied to the input, the load energizes immediately and remains energized for the length of the time delay, regardless of the state of the switch being bypassed. At the end of the time delay, the condition of the load is determined by the state of the switch.
- Designed to bypass a low pressure switch or other device during startup
- Key component for “winter start” kits
- Universal AC voltage operation
- Knob-adjustable time delay
- Epoxy-encapsulated circuitry
| Voltage | 18-240 VAC |
| Frequency | 50/60 Hz |
| Output Ratings | 1 amps, 10 amp inrush, 40 mA holding current |
| Time Delay | 10-1,000 Seconds |
| Dimensions | 2.00'' x 2.00'' x 1.25'' |
| Certifications | CSA, cURus |
