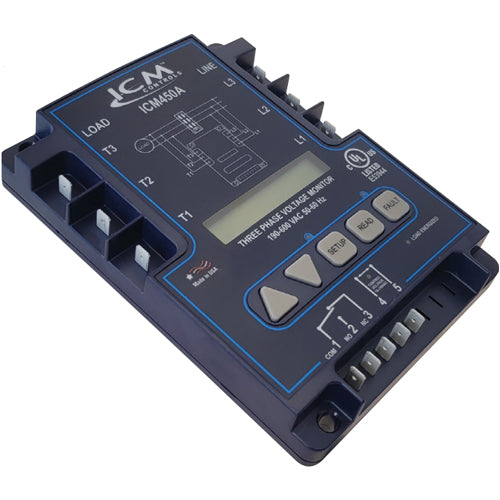

Alltemp 24-ICM450A, Motor Protection Control, Programmable 3-Phase Line Voltage Monitor, Universal 190-600 VAC, 50/60 Hz, Control 18-240 VAC, SPDT Output
Regular price
$718.28
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Backlit LCD
- Simultaneous 3-phase true RMS voltage monitoring
- Factory calibrated
- 3-phase voltages simultaneously displayed on LCD
- Fault memory
- Fault monitoring: High / low voltage, voltage unbalance, phase loss, phase reversal
- Real time clock, date and time stamped events (ICM450A PLUS+ Only)
- Fully adjustable variables
- Modbus RS485 communications (ICM450A PLUS+ Only)
- LED indicators
- Common 1/4'' quick connect terminations
- English or Spanish menu options
| Input Voltage Range | Universal 190-600 VAC |
| Frequency | 50/60 Hz |
| Load Side Monitoring | Optional |
| Control Voltage | 18-240 VAC |
| Output Type | Relay, SPDT |
| Output Voltage Range | 277 VAC @ 6A maximum |
| Mounting | Surface mount using (2) #8 screws |
| Terminations | 1/4'' quick connects |
| Dimensions | 6.50'' x 4.75'' x 1.09'' |
| Operating Temperature | -4ºF to +149ºF (-20ºC to +65ºC) |
| Certifications | cULus |
