Alltemp 24-ICM518, Split Phase Surge Protective Device, 240 VAC, 50/60 Hz, Maximum Surge Current 100 kA, Short Circuit Current Rating 200 kA
Regular price
$333.34
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

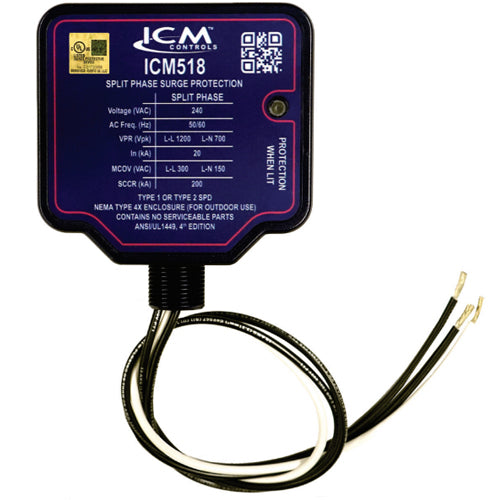

The ICM518 is a UL Listed Whole-Home Surge Protective Device for 240 VAC Split-Phase configurations designed to protect a dwellings most valuable asset. It can be installed as a Type 1 (whole home) or a Type 2 Surge Protective Device. Type 1 applications include installations before a service entrance or utility meter. Type 2 applications include installations after service entrances protecting particular equipment. The ICM518 has a NEMA Type 4X waterproof rated enclosure that is suitable for both indoor and outdoor use.
- Easy 3-wire installation
- Green LED indicator tells whether the device is operational
- UL Listed Type 1 or Type 2 SPD
- NEMA Type 4X watertight enclosure for indoor/outdoor use
- Limited Lifetime Protection Warranty
| Service Voltage | 240 VAC |
| Input Power Frequency | 50/60 Hz |
| Maximum Surge Current | 100 kA |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In) | 20 kA |
| Protection Mode | L1-L2, L1-N, L2-N |
| Maximum Continuous Operation Voltage | L-L: 300 VAC, L-N: 150 VAC |
| VPR | L-L: 1200 VAC, L-N: 700 VAC |
| SPD Type | Type 1 (can also be used in Type 2 apps) |
| Surge Protection Technology | TFMOV (Thermally Protected Metal Oxide Varistor) |
| Conduit Connection | 3/4'' |
| Dimensions | 4.30'' x 4.10'' x 2.30'' |
| Certifications | cULus |
