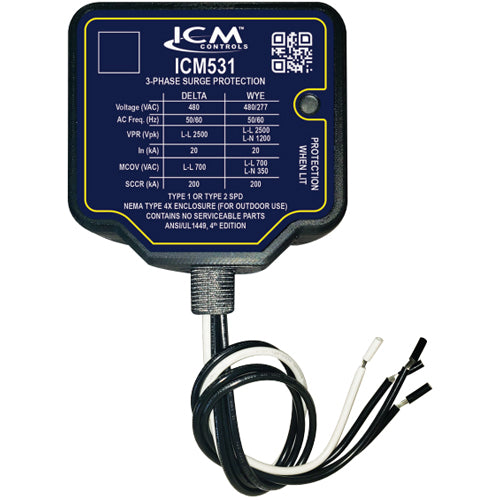

Alltemp 24-ICM531, 3-Phase Surge Protective Device for 3-Phase Delta 480 VAC or Wye 277/480 VAC, Maximum Surge Current 150 kA
Regular price
$648.44
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- ENEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor apps
- UL Listed Type 1 or Type 2 SPD
- Limited Lifetime Protection Warranty
- 150 kA maximum surge current protection
| Service Voltage | 480 VAC Delta or 277/480 VAC Wye |
| Input Power Frequency | 50/60 Hz |
| Maximum Surge Current | 150 kA |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In) | 20 kA |
| Protection Mode | 3 for Delta configuration, 6 for Wye configuration (neutral tied to ground) |
| Maximum Continuous Operation Voltage | L-L: 700 VAC, L-N: (for Wye configuration only): 350 VAC |
| VPR | Delta L-L: 2500 VAC, Wye L-L: 2500 VAC, Wye L-N: 1200 VAC |
| SPD Type | Type 1 (can also be used in Type 2 apps) |
| Surge Protection Technology | TFMOV (Thermally Protected Metal Oxide Varistor) |
| Dimensions | 4.30'' x 4.10'' x 2.30'' |
| Certifications | cULus |
