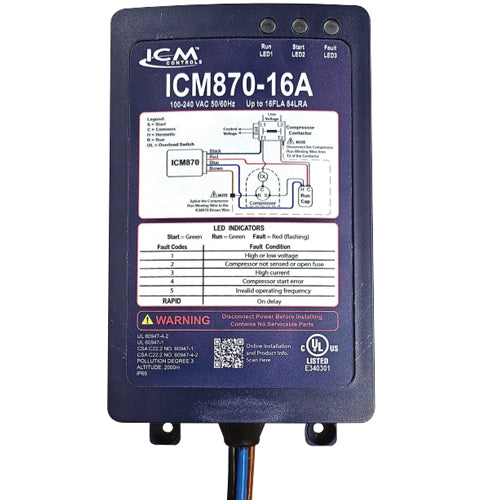

Alltemp 24-ICM870-16A, Motor Starter, Soft Start Control, Input 120/240 VAC, 50/60Hz, Maximum Nomina Current 16A, IP65/Type 4X Enclosure
Regular price
$813.06
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Reduces in-rush current/draw necessary at startup by up to 70%
- Prolong the life of the A/C by reducing excessive torque, wear and tear
- Starting current reduction and self-learning algorithm
- Built-in start capacitor
- Over/under voltage monitoring
- Over-current protection
- Diagnostic indicators
- Ultrasonic sealed tamper-proof enclosure
| Inputs | L1 & L2 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Over Voltage Limits | 120 VAC nominal = 140 VAC 240 VAC nominal = 250 VAC |
| Under Voltage Limits | 120 VAC nominal = 95 VAC 240 VAC nominal =195 VAC |
| Outputs | Compressor |
| Maximum Nominal Current | 16A |
| Over Current Limits | ICM870-9A = 11.25A, ICM870-16A = 20A |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Humidity | 0-95% Non-Condensing |
| Enclosure | IP65/Type 4X |
| Dimensions | 7.60'' x 3.20'' x 2.10'' |
| Certifications | cULus |
