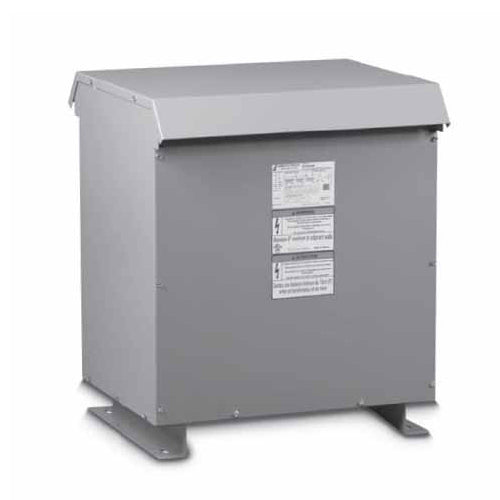

BEMAG 423-5269-000, 150KVA, General Purpose Transformer, Isolated Type, 3 Phase, Ventilated, Primary 600V Delta, Secondary 208Y/120V, Aluminum Windings, NEMA 3R Enclosure
Regular price
$7,965.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
BEMAG 423-5269-000, 150KVA, Aluminum Windings, NEMA 3R Enclosure. 3 Phase Ventilation Transformer. Primary 600V Delta, Secondary 208Y/120V, Isolation Type. For General Loads, Including Lighting, Industrial and Commercial Applications.
| Family | Three-Phase General Purpose Transformers – NRCAN-2019, C802 Compliant |
| Length (in) | 32.5 |
| Width (in) | 33 |
| Height (in) | 42 |
| Winding Material | Aluminium / Al |
| Phase | Three Phase |
| First Voltage | 600V |
| Secondary Voltage | 120/208Y |
| Wattage (w) | 150KVA |
| Efficiency (typical) | NRCAN-2019, C802 Compliant |
| IP Rating | Type 3R Enclosure |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Insulation Class: 220°C |
| Weight (lb.) | 1125 |
| UL Listed | UL, cUL, CSA |
| Warranty | 1 Years |
| Cross Refefence | CAUTION: When using the 120V center tap for single-phase applications, the single-phase load should not exceed 5% of the three-phase kVA rating. Connect the X3 “high leg” to the “B” phase per NEC 384- 3 (do not use X3 leg for 120V lighting). A separate single-phase transformer should be used if the single-phase load is in excess of 5%. Fuse input side per current NEC requirements. |
