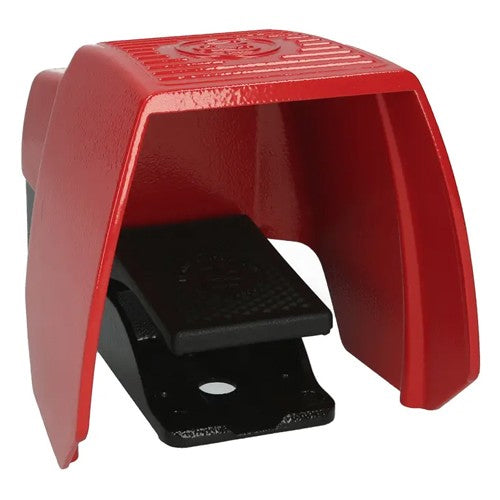

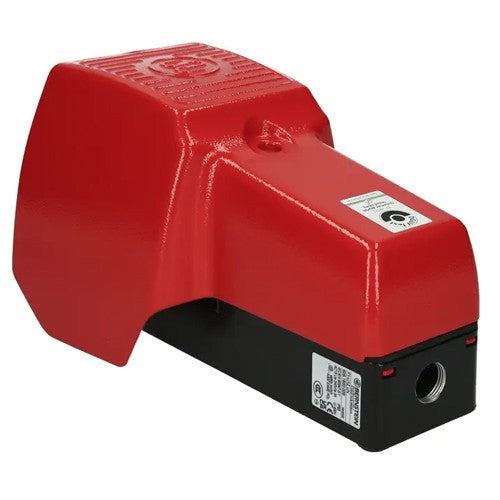

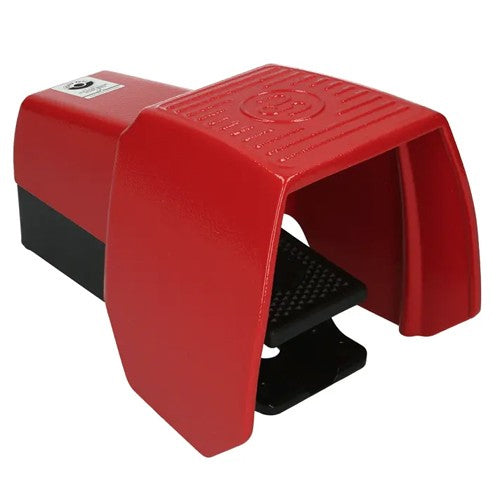

Bernstein F1-U1Z UN Foot Swtich, Single Pedal Switch, Spring Retrun with Guard, 240V 10A 1NO + 1NC, Slow Action, Red Aluminum Enclosure and Guard, IP65
Regular price
$253.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Notes: Tapped holes not in use must be closed with blind plugs. The degree of protection (IP code) specified applies only to a properly closed accident protection cover and in connection with the appropriate cable glands or blind plugs.
| Part No | 606.1600.006 |
| Rating | Utilization Category AC-15, Ue 240 V /Ie 3 A, Ui 400 V |
| Voltage (V) | 240V |
| Amperage | 10A |
| Width (in) | 75mm |
| Height (in) | 145mm |
| Depth (in.) | 250mm |
| Color | Black / Red |
| Maximum ON/OFF Time: | Switching frequency: 50/minute |
| IP Rating | IP65 |
| Switch Type: | 1 NO (Normally Open) + 1 NC (Normally Close) Contact Type |
| Mounting | Connection type: Screw connection Ф 3.5mm |
| Wire Gauge | 20-16 AWG |
|
Ambient air temperature
|
–30 °C … +80 °C
|
| Material | Die-Case Aluminum Enclosure and Protection Guard, Thermoplastc Pedal |
| UL Listed | CSA, CSAus listed, DGUV, CCC, CE, UKCA |
