Home » BRK 1038871, 120V AC, 60Hz Combination Smoke & Carbon Monoxide Alarm with 10 Year Sealed Lithium Battery Backup
BRK

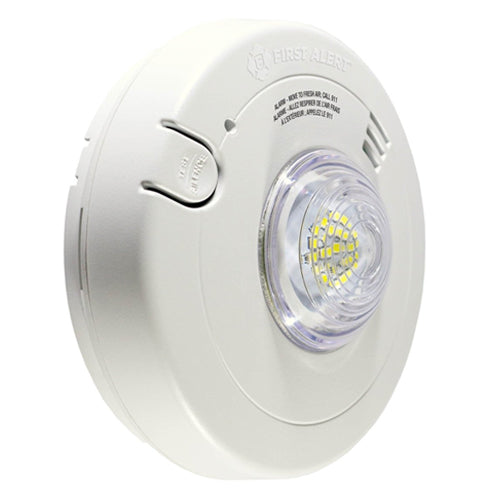

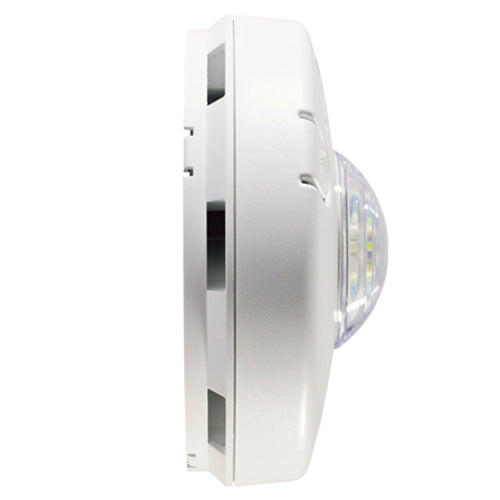

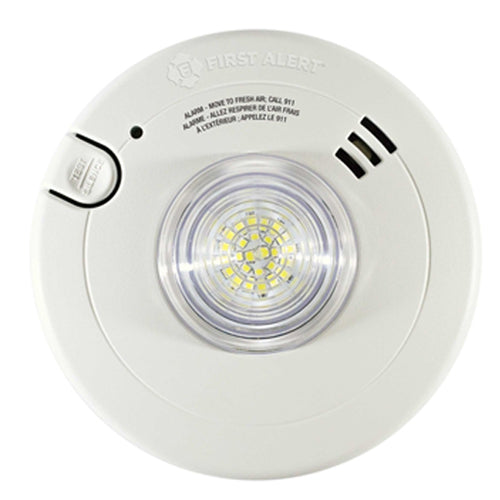

BRK 1038871, 120V AC, 60Hz Combination Smoke & Carbon Monoxide Alarm with 10 Year Sealed Lithium Battery Backup

In stock
SKU: 1038871
$149.95

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Hardwired combo smoke and CO alarm with 10-year sealed lithium battery backup. Includes 177 candela LED strobe light. AC 120V interconnectable with silence and latching features. Includes photoelectric smoke-sensing technology and electrochemical carbon monoxide sensor. Available in Canada Only.

  • AC Powered with 10-Year Battery Backup
  • Integrated Combination Smoke & Carbon Monoxide Alarm & Strobe Light-saves installation times and costs!
  • Smart Strobe- Separate flash patterns to distinguish between smoke and carbon monoxide
  • 177 Candela Synchronized LED-Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
  • 1 HZ Flash Rate
BRK Model 7030BSLA
Alarm Dimensions 5.2" Dia. x 2.3" H
Weight 10.6 oz
Operating Voltage 120V AC 60Hz with 3V Sealed Lithium Metal Battery Backup for alarm
Operating Current Alarm 0.8 A
Temperature Range 40°F (4°C) to 100°F (38°C)
Humidity Range 10% to 95% relative humidity (RH)
Audio Alarm 85dB at 10 feet
Test/Silence Electronically simulates smoke condition, causing the unit to alarm. Press and hold test/silence button.
Alarm Reset Automatic when smoke clears
Color White
Interconnections Up to 18 units of First Alert or BRK Smoke, CO and
Heat Alarms. Maximum number of 12 smoke alarms
Smoke Sensor Photoelectric
CO Sensor: Electrochemical
Strobe Light 177 candela LED strobe
Indicator Lights/Sounds

AC Power:  Constant Green LED

DC Power:  Green LED flash, once per minute

Alarm Condition:  Red LED flashes with audible alarm (horn) pattern and strobe (flash) pattern

Horn Pattern:  Smoke - Approx. 1 beep per second for 3 beeps, then 1 second off. CO - 4 rapid beeps, then 5 seconds off.

Strobe Pattern:  Smoke - Constant, approx. 1 flash per second. CO - Approx. 1 flash per second for 4 flashes, then 3 seconds off

Silence:  Approx. 9 minutes Smoke initiating alarm, approx. 4.5 minutes CO initiating alarm, 8 hours End of Life

Alarm Latch:  Smoke - Horn off and Red LED flashing 2 seconds on, 2 seconds off. CO - Same as smoke but with 4 short red LED pulses after 2 seconds on

of Life /Low Battery Indicator:  Green LED flashing 2 seconds on, 2 seconds off

End of Life Signal /Low Battery Signal:  5 short chirps with 5 Green LED flashes once per minute
Listing

Certified to CAN/CSA STD 6.19-01 & ULC STD S531
& ULC STD S526
Warranty

10 Years Limited
