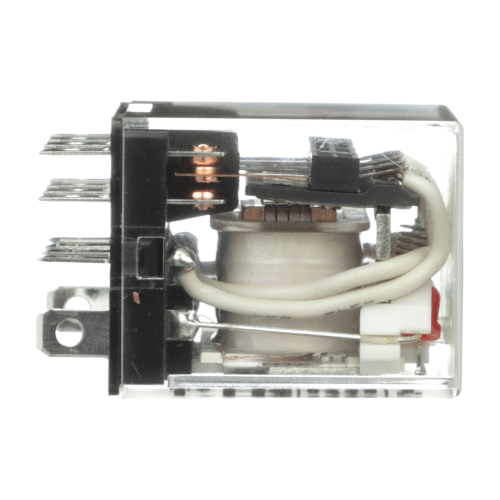

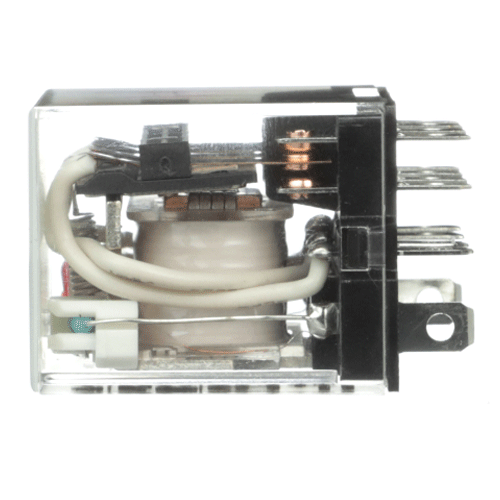

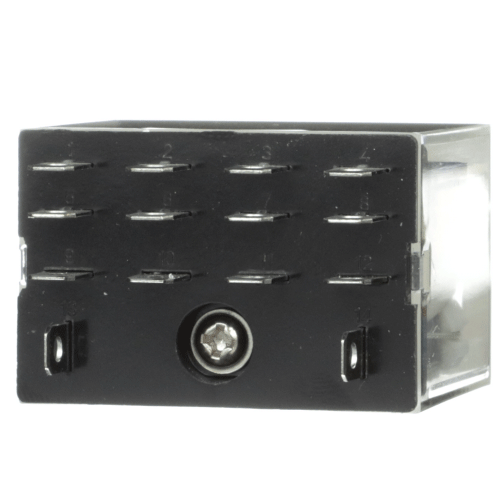

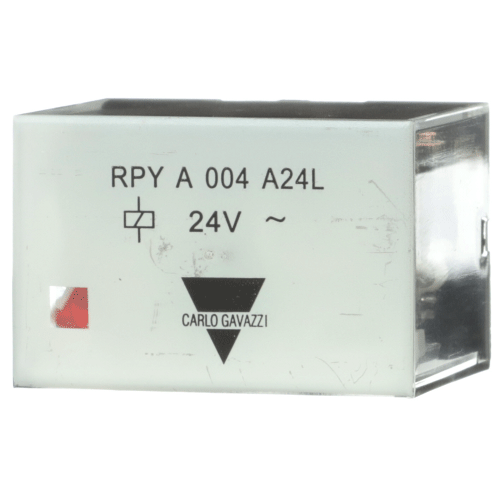

Carlo Gavazzi RPYA004A24L, Industrial Relay Type RPY 4 DPDT 14 Pin 10Amp, 24VAC Coil, LED Indication
Regular price
$29.60
Pickup available at 220 Alden Road
Usually ready in 24 hours
Use this text to encourage communication or promote sharing on social networks.
14 Pin Socket Mounting, 4 Change Over Conntact (DPDT {4-form C}), 10Amp Contact Rating, 24Volt AC Coil, with LED Indication. (Socket for RPYA004 Relays is ZPY14A, need to be purchased separately. )
| Full Load Amps | 10 |
| Coil Voltage | 24VAC |
| Contact Code | 4DPDT |
| Length (in) | 28mm / 1.10'' |
| Width (in) | 28mm / 1.10'' |
| Height (in) | 43mm / 1.70'' |
| Sold Separately | Relay Base |
| Start Temp. (Min) | -25C / -13F |
| Start Temp. (Max) | 55C / 131F |
| UL Listed | TÜV, UL, CSA approved |
