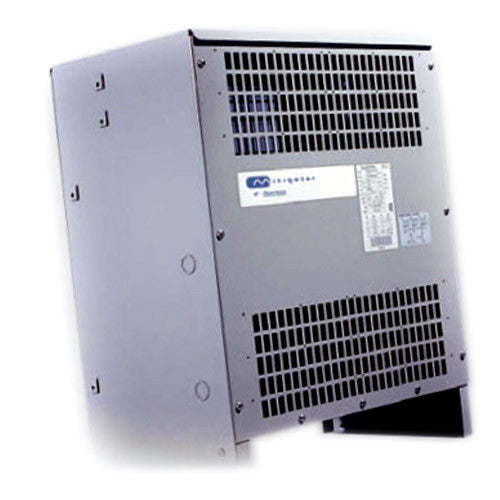

Delta DA3112R, 112.5KVA , Commercial Transformer, 3 Phase, Type 1, Aluminium C802, Primary 480V, Secondary 120/208Y
Regular price
$3,868.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* This item is not available to Ontario customers due to new Ontario Regulation 401-12 Efficiency Requirement.
| Family | DRY TYPE GENERAL PURPOSE TRANSFORMER / TRANSFORMATEUR D'APPLICATION GÉNÉRALE DE TYPE SEC |
| Length (in) | 21.25 (Depth) |
| Width (in) | 25.60 |
| Height (in) | 28.91 |
| Winding Material | Aluminium / Al |
| Phase | Three Phase |
| First Voltage | 480V |
| Secondary Voltage | 120/208Y |
| Wattage (w) | 112.5KVA |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Insulation Class: 220°C |
| Weight (lb.) | 587 lbs |
| UL Listed | CSA Certified |
| Warranty | 1 Years |
