Electric Power 10J3S5CCN1T1, 10KVA, Isolation Type Transformer, 3 Phase, Primary 208V DeltaV, Secondary 230Y/133V Wye, Copper
Regular price
$2,712.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

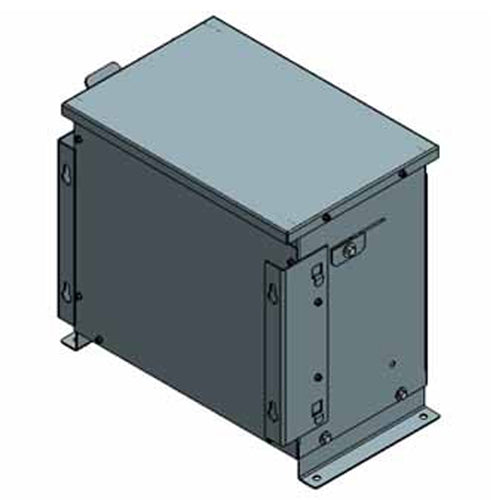

Spec No. 10J3S5CCN1T1. 10KVA Primary 208V Delta, Secondary 230V Wye / 133V , 60Hz, Three Phase, 3 Coil, Step Up Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 230V Wye / 133V |
| Wattage (w) | 10KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | C22.2 No 47, C802.2 / NRCAN 2018 |
| Warranty | 2 Years |
