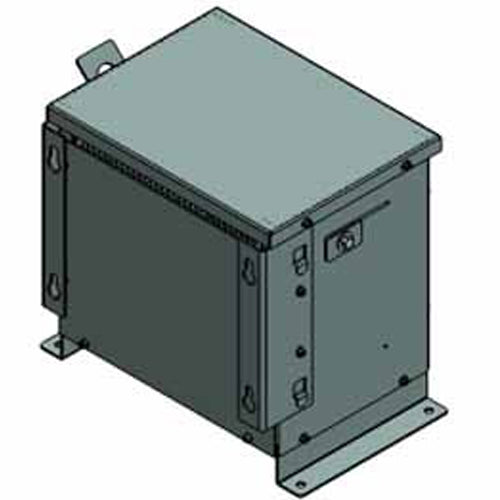

Electric Power 10K6R2DCT0, 10KVA, General Purpose Isolation Type, 3 Phase, Primary 575V, Secondary 220/460V, NEMA 1, Copper
Regular price
$1,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
10KVA, Spec No. 10K6R2DCT0. Primary 575V, Secondary 220/460V, 60Hz, Three Phase, 3 Coils, Isolation Type with Neutral, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Dry Type Isolation Transformer |
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 575V 60Hz |
| Secondary Voltage | 220/460V |
| Wattage (w) | 10KVA |
| Housing | NEMA 1 |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
