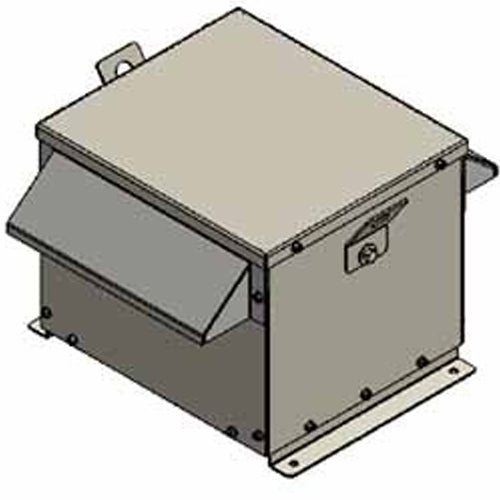

Electric Power 10L5R4AC, 10 KVA, Auto Transformer, 3 Phase, NEMA 3R, Copper, Primary 416Y/240, Secondary 208Y/120
Regular price
$1,980.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 10L5R4AC. Step Down Transformer from 416Y/240 to 208Y/120. 3 Phase. Copper Coil. Drip Proof NEMA 3R Enclosure.
| Family | DRY TYPE GENERAL PURPOSE TRANSFORMER / TRANSFORMATEUR D'APPLICATION GÉNÉRALE DE TYPE SEC |
| Length (in) | 18 1/2 (Depth) |
| Width (in) | 17 1/9 |
| Height (in) | 11 4/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 240/416Y |
| Secondary Voltage | 120/208Y |
| Wattage (w) | 10KVA |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Insulation Class: 220°C |
| Weight (lb.) | 77 |
| UL Listed | CSA Certified |
| Warranty | 1 Years |
