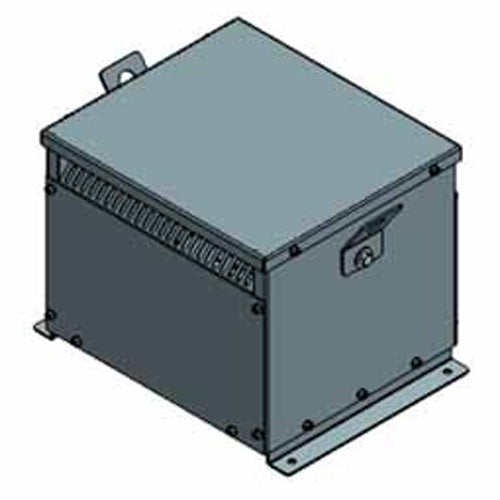

Electric Power 10M1R8ABT0, 10KVA, General Purpose Auto Transformer, 3 Phase, Primary 575V, Secondary 460V, NEMA 1, Copper
Regular price
$1,999.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
10KVA, Spec No. 10M1R8ABT0. Primary 575V, Secondary 460V, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Dry Type Auto Type Transformer |
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 575V 60Hz |
| Secondary Voltage | 460V |
| Wattage (w) | 10KVA |
| Housing | NEMA 1 |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
