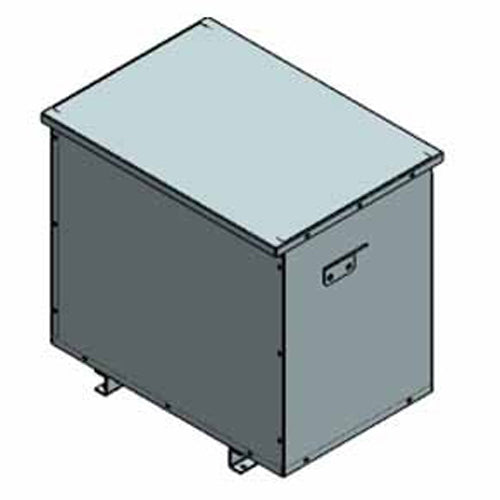

Electric Power 112J3R7C5T1, 112.5KVA, General Purpose Isolation Transformer, 3 Phase, Primary 208V Delta, Secondary 480Y/277 Wye, Copper
Regular price
$9,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 112J3R7C5T1. Primary 208V Delta, Secondary 480Y/277V Wye, 60Hz, 3 Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Step Up Transformer |
| Length (in) | 22.3 (Depth) |
| Width (in) | 35.3 |
| Height (in) | 29.6 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 480Y/277V Wye |
| Wattage (w) | 112.5KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 770 |
| UL Listed | CSA |
| Warranty | 2 Years |
