Home » Electric Power 112K5Q8D5, 112.5KVA, General Purpose Isolation Type, 1 Phase, Primary 600V, Secondary 240/120V, Copper
Electric Power

Electric Power 112K5Q8D5, 112.5KVA, General Purpose Isolation Type, 1 Phase, Primary 600V, Secondary 240/120V, Copper

In stock
SKU: 112K5Q8D5
$9,475.00
Voltage range
Phase
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

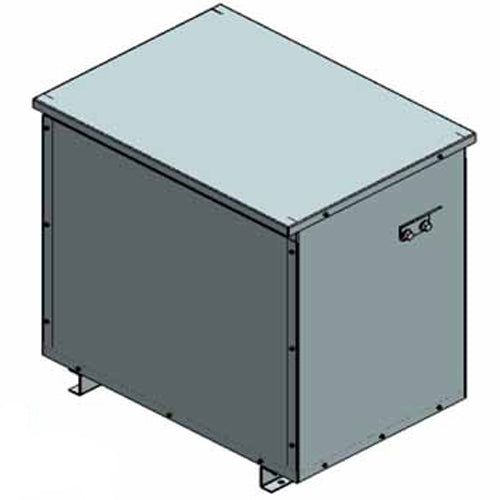

Spec No. 112K5Q8D5. Primary 600V, Secondary 240/120V, 112.5KVA, 60Hz, Single Phase, 1 Coil, Step Down Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.

Length (in) 22.3  (Depth)
Width (in) 35.3
Height (in) 29.6
Winding Material Copper / Cu
Phase Single Phase
First Voltage 600V 60Hz
Secondary Voltage 120/240V 60Hz
Wattage (w) 112.5KVA
Type Isolation
Start Temp. (Min) Temperature Rises: 150°C
Start Temp. (Max) Isulation Class: 220°C
Weight (lb.) 520
UL Listed CSA
Warranty 1 Years
