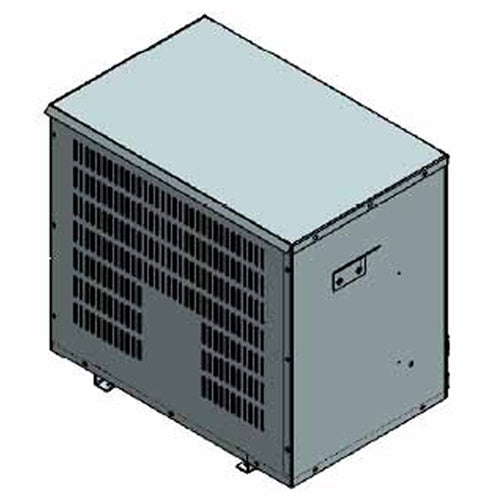

Electric Power 112K5R4C5, 112.5KVA, General Purpose Isolation Type, 3 Phase, Primary 600D Delta, Secondary 208Y/120, Copper
Regular price
$9,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 112K5R4C5. Primary 600D, Secondary 208Y/120, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 21 5/8 (Depth) |
| Width (in) | 35 |
| Height (in) | 28 2/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V 60Hz |
| Secondary Voltage | 208Y/120 |
| Wattage (w) | 112.5KVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 770 |
| UL Listed | CSA |
| Warranty | 1 Years |
