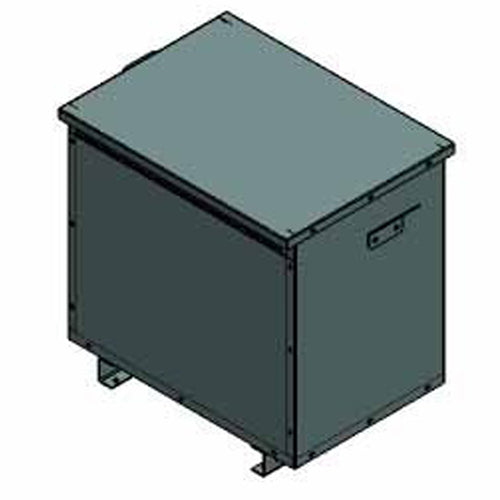

Electric Power 115K5S3C6N1T1, 115KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600D, Secondary 380Y/220, Copper
Regular price
$12,850.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 115K5S3C6N1T1. Primary 600V Delta, Secondary 380V/220V Wye, 115KVA, 60Hz, 3 Phase, 3 Coil, Step Down Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada. Classification: C22.2 No 47, C802.2 / NRCAN 2018.
| Family | Step Down Transformer |
| Length (in) | 26.3 (Depth) |
| Width (in) | 39.2 |
| Height (in) | 40 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 380Y/220 |
| Wattage (w) | 115KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA C22.2 No 47, C802.2 / NRCAN 2018 |
| Warranty | 2 Years |
