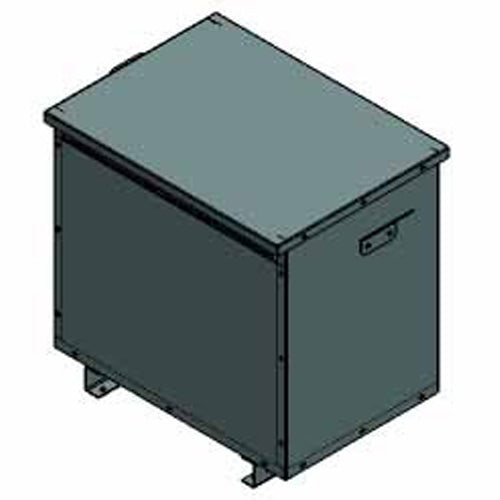

Electric Power 115MS4A4T0, 115KVA, General Purpose Auto Transformer, 3 Phase, Primary 600V Wye, Secondary 240V Wye, Copper
Regular price
$7,999.24
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
115KVA, Spec No. 115MS4A4T0. Primary 600V Wye, Secondary 240V Wye, 60Hz, 3 Phase, 3 Coils, Auto Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 20 (Depth) |
| Width (in) | 31.7 |
| Height (in) | 26.7 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Wye |
| Secondary Voltage | 240V Wye |
| Wattage (w) | 115KVA |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 525 |
| UL Listed | CSA |
| Warranty | 2 Years |
