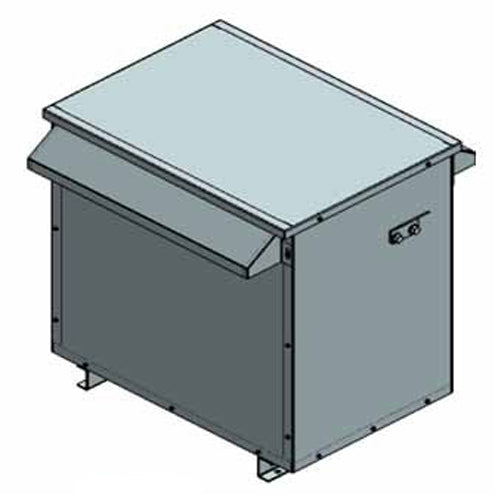

Electric Power 150J3SC6N3T1, 150KVA, General Purpose Isolation Transformer, 3 Phase, Primary 208D, Secondary 600Y/347V, Copper, NEMA 3R Enclosure
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150KVA, Spec No. 150J3SC6N3T1. Primary 208V Delta, Secondary 600V Wye / 347V, 60Hz, Three Phase, 3 Coils, Isolation Type Transformer, NEMA 3R (Outdoor Rated) Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 33.9 (Depth) |
| Width (in) | 39.9 |
| Height (in) | 39.2 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 600V Wye, 347V |
| Wattage (w) | 150KVA |
| IP Rating | Type 3R Enclosure |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
