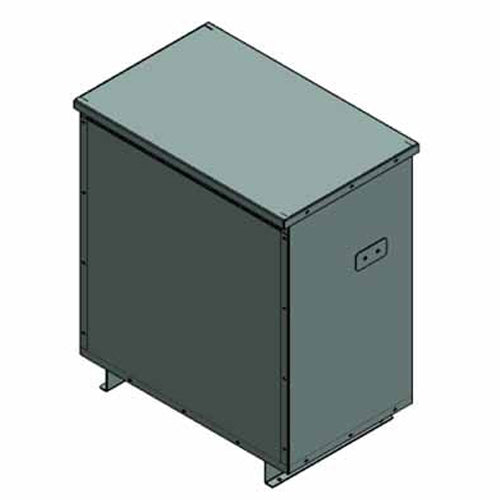

Electric Power 150K2R6C6T1, 150KVA, General Purpose Isolation Type, 3 Phase, Primary 480V , Secondary 400Y/231V, NEAM 1, Copper
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150KVA, Spec No. 150K2R6C6T1. Primary 480V, Secondary 400Y/231, 60Hz, Three Phase, 3 Coil, Isolation Type with Neutral, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Dry Type Isolation Transformer |
| Length (in) | 26.3 (Depth) |
| Width (in) | 39.20 |
| Height (in) | 40 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480V 60Hz |
| Secondary Voltage | 400Y/231 |
| Wattage (w) | 150KVA |
| Housing | NEMA 1 |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
