Electric Power 150K2S3C6, 150KVA, General Purpose Isolation Type, 3 Phase, Primary 480D, Secondary 380Y/220, Copper
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

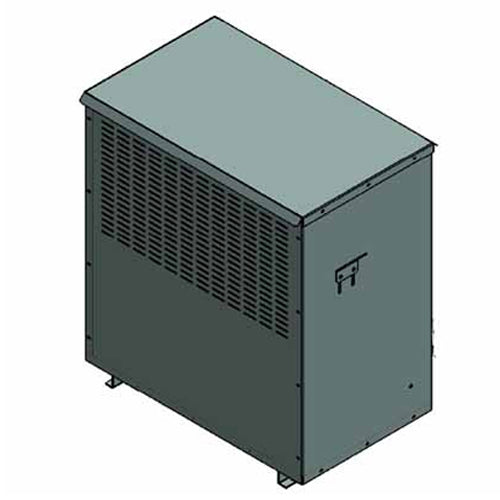

150KVA, Spec No. 150K2S3C6. Primary 480D, Secondary 380Y/220, 60Hz, Three Phase, 3 Coils, Isolation Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 25 5/8 (Depth) |
| Width (in) | 40 |
| Height (in) | 38 8/9 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480D 60Hz |
| Secondary Voltage | 380Y/220 |
| Wattage (w) | 150KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 1 Years |
