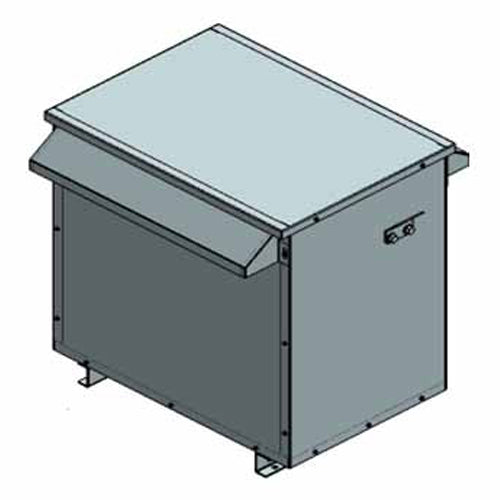

Electric Power 150K5R4C6N3T1, 150KVA, Commercial Isolation Type, 3 Phase, Primary 600D, Secondary 208Y/120V, Copper, Type 3R Enclosure
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150KVA, Spec No. 150K5R4C6N3T1. Primary 600V Delta, Secondary 208V Wye / 120V, 60Hz, Three Phase, Isolation Type, NEMA 3R Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 33.9 (Depth) |
| Width (in) | 39.2 |
| Height (in) | 39.9 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 208V Star / Wye Configure / 120V |
| Wattage (w) | 150KVA |
| IP Rating | Type 3R Enclosure |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2-Year |
