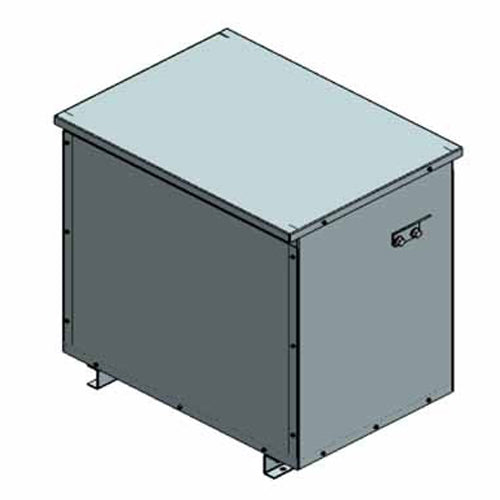

Electric Power 150K5R7C6N1T1K, 150KVA, High Efficiency Isolation Transformer, 3 Phase, Primary 600V Delta, Secondary 480Y/277V, Copper, NEMA 1 Enclosure
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150KVA, Spec No. 150K5R7C6N1T1K. Primary 600V Delta, Secondary 480V Wye / 277V, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 26.3 (Depth) |
| Width (in) | 40 |
| Height (in) | 39.2 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 480Y Wye / 277V |
| Wattage (w) | 150KVA |
| Efficiency (typical) | Winding Material Copper/EFF 98% |
| Type | Isolation Transformer with Neutral at 480V side |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
