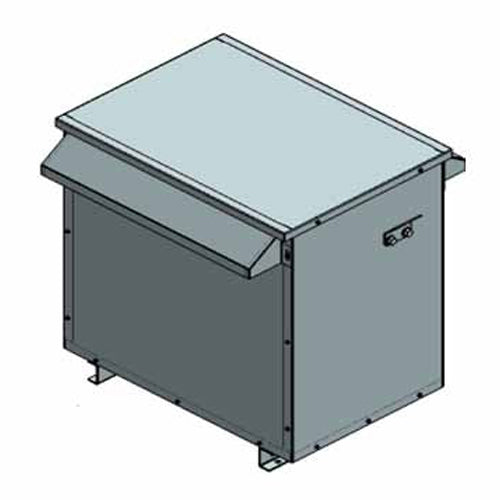

Electric Power 150L7Q5C6N3T1, Transformer 150KVA, Commercial Isolation Type, 3 Phase, Primary 480Y/277V, Secondary 600D, Copper, Type 3R Enclosure
Regular price
$14,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150KVA, Spec No. 150L7Q5C6N3T1. Primary 480V Wye / 277V, Secondary 600V Delta, 60Hz, Three Phase, Isolation Type, NEMA 3R Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 33.9 (Depth) |
| Width (in) | 39.2 |
| Height (in) | 39.9 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480Y / 277V |
| Secondary Voltage | 600V Delta |
| Wattage (w) | 150KVA |
| IP Rating | Type 3R Enclosure |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2-Year |
