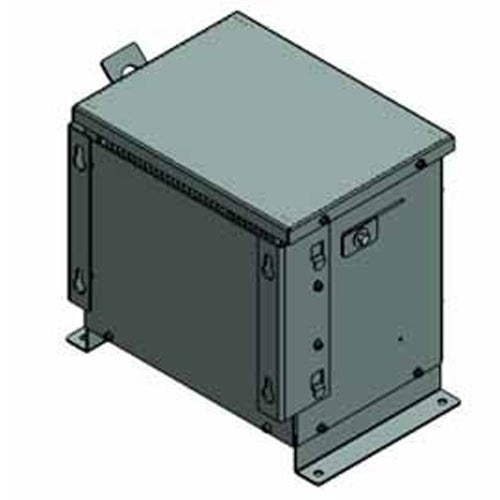

Electric Power 15B6Q8C1T0, 15KVA, Isolation Type Transformer, 1 Phase, Primary 190/208/220/240/380/416/440/480V, Secondary 120/240V, Copper
Regular price
$2,966.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
15KVA, Spec No. 15B6Q8C1T0. Primary 190V 208V 220V 240V 380V 416V 440V 480V, Secondary 120V, 240V, 60Hz, Single Phase, NEMA 1 Enclosure, Isolation Type. Copper Conductor. Made in Canada.
| Family | Commercial Series Distribution Transformer |
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 190V 208V 220V 240V / 380V 416V 440V 480V |
| Secondary Voltage | 120/240V |
| Wattage (w) | 15KVA |
| Housing | NEMA 1 |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 180 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
