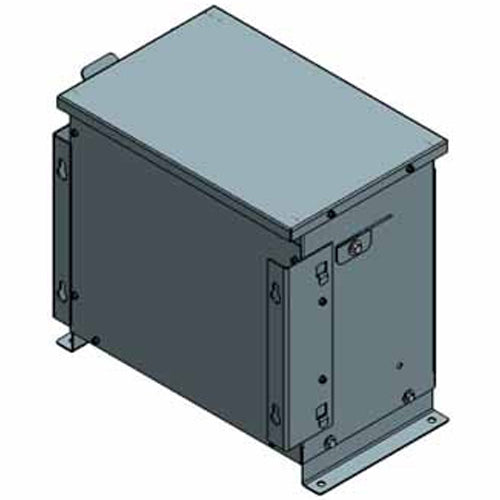

Electric Power 15J2SC1N1T1, 15KVA, General Purpose Transformer, Isolation Type, 3 Phase, Primary 208D, Secondary 600Y/347V, Copper
Regular price
$3,299.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 15J2SC1N1T1. Primary 208V Delta, Secondary 600V Wye / 347V, 60Hz, Three Phase, 3 Coil, Step Up Transformer, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 600V Wye / 347V |
| Wattage (w) | 15KVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 230 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
