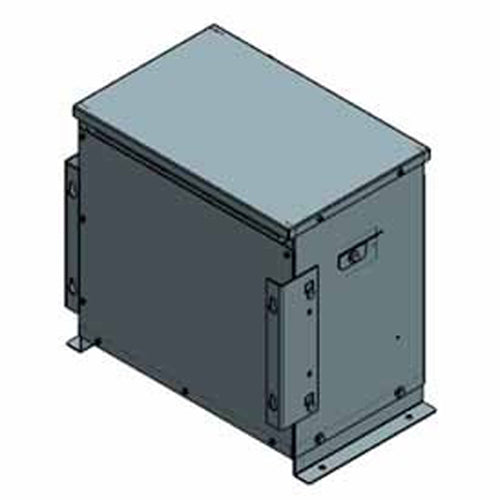

Electric Power 15J4R5C1N1T1, 15KVA, General Purpose Isolation Type Transformer, 3 Phase, Primary 240V, Secondary 416Y/240V, Copper
Regular price
$3,615.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
15kVA, Spec No. 15J4R5C1N1T1. Primary 240V, Secondary 416V Wye / 240V , 60Hz, Three Phase, 3 Coil, Step Down Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 26 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 240V Delta |
| Secondary Voltage | 416V Wye / 240V |
| Wattage (w) | 15KVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 240 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
