Electric Power 15L8S6ACN0T0, 15KVA, 3 Phase, Primary 460V Wye, Secondary 220V Wye, Copper, Auto Type Transformer, Open Style
Regular price
$2,245.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

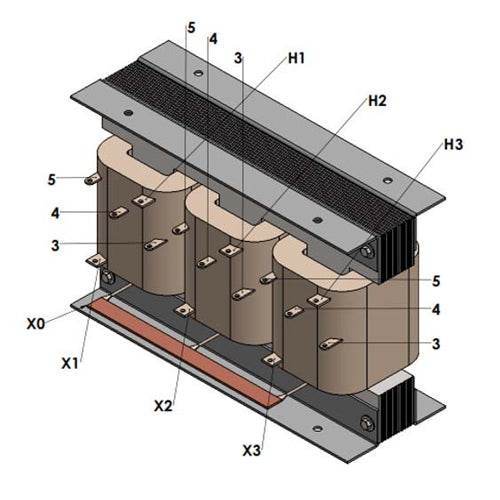

15KVA, Spec No. 15L8S6ACN0T0. Primary 460V Wye, Secondary 220V Wye, 60Hz, 3 Phase, 3 Coil, Auto Transformer, Open Style for Installed Inside Enclosures or Control Panels. Copper Winding. Made in Canada.
| Family | Step Down Auto Type Transformer |
| Length (in) | 8.3 (Depth) |
| Width (in) | 15 |
| Height (in) | 10.5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 460V Wye |
| Secondary Voltage | 220V Wye |
| Wattage (w) | 15KVA |
| Housing | Open Style, without Enclosure, for Mounting into Enclosures or Control Panels |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 70 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
