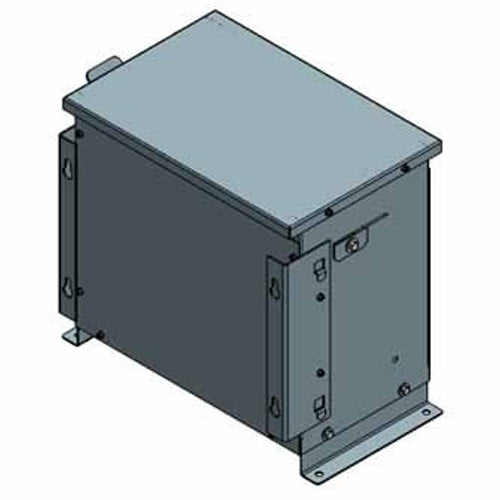

Electric Power 15M4SACN1T0,15kVA, 3 Phase, Primary 240V, Secondary 600V, Copper Winding, NEMA 1 Enclosure, Auto Type Transformer
Regular price
$2,500.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 15M4SACN1T0. Primary 240V Wye, Secondary 600V Wye, 60Hz, Three Phase, 3 Coil, Step Up Transformer, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Auto Type Transformer |
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 240V Wye |
| Secondary Voltage | 600V Wye |
| Wattage (w) | 15KVA |
| Housing | NEMA 1 |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
