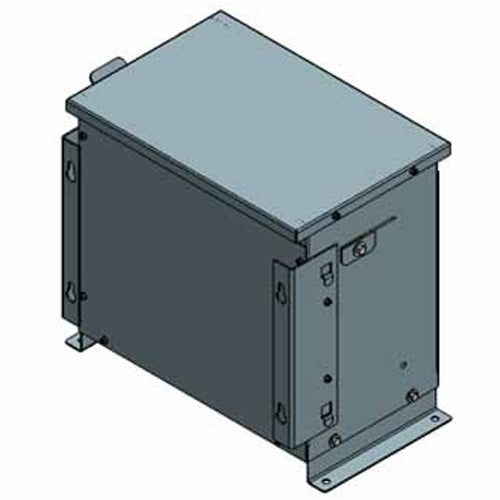

Electric Power 15MS6ACT0, 15KVA, General Purpose Auto Transformer, 3 Phase, Primary 600V Wye, Secondary 220V Wye, Copper
Regular price
$2,245.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
15KVA, Spec No. 15MS6ACT0. Primary 600V Wye, Secondary 220V Wye, 60Hz, 3 Phase, 3 Coil, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Wye |
| Secondary Voltage | 220V Wye |
| Wattage (w) | 15KVA |
| Type | Auto Type Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
