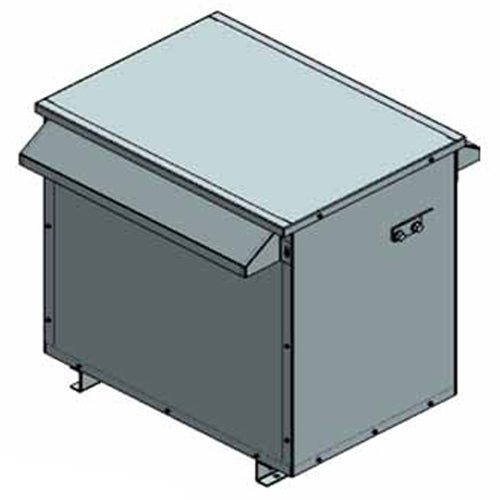

Electric Power 167K5Z9C6N3T1, 167KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 347Y/200V, Copper, NEMA 3R Enclosure
Regular price
$17,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
167KVA, Spec No. 167K5Z9C6N3T1. Primary 600V Delta, Secondary 347V Wye / 200V, 60Hz, 3 Phase, 3 Coil, Step Down Isolation Type, NEMA 3R Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 33.9 (Depth) |
| Width (in) | 39.9 |
| Height (in) | 39.2 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 347V Wye / 200V |
| Wattage (w) | 167KVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1065 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
