Electric Power 200K5R4C7N1T2, 200KVA, Commercial Isolation Type Transformer, 3 Phase, Primary 600D, Secondary 208Y/120V, Copper, NEMA 1 Enclosure
Regular price
$21,740.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

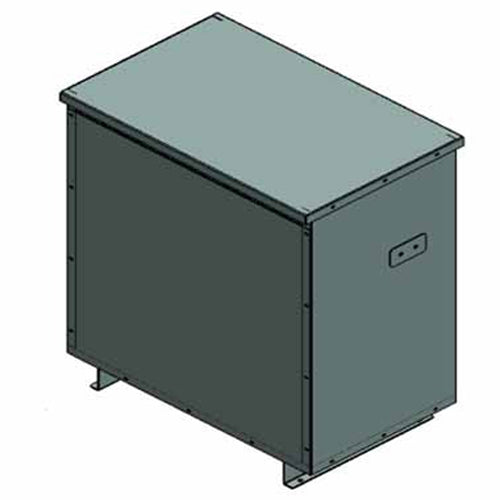

200KVA, Spec No. 200K5R4C7N1T2. Primary 600V Delta, Secondary 208V Wye / 120V, 60Hz, Three Phase, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Dry Type Step Down Transformer |
| Length (in) | 26.6 (Depth) |
| Width (in) | 48.1 |
| Height (in) | 41.6 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 208V Wye / 120V |
| Wattage (w) | 200kVA |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1670 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
