Electric Power 200K5R8C7, 200KVA, General Purpose Isolation Type, 3 Phase, Primary 575D, Secondary 460Y, Copper
Regular price
$17,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

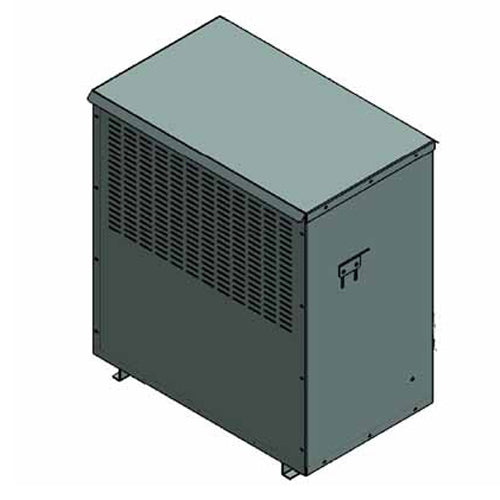

200KVA, Spec No. 200K5R8C7. Primary 575D, Secondary 460Y, 60Hz, Three Phase, 3 Coils, Isolation Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 26 8/9 (Depth) |
| Width (in) | 45 1/2 |
| Height (in) | 46 1/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 575D 60Hz |
| Secondary Voltage | 460Y |
| Wattage (w) | 200kVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1250 |
| UL Listed | CSA Certified |
| Warranty | 1 Years |
