Electric Power 200K5S3C7N1T1, 200KVA, General Purpose Isolation Type Transformer, 3 Phase , Primary 600V Delta, Secondary 380Y/220 Wye, Copper
Regular price
$23,249.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

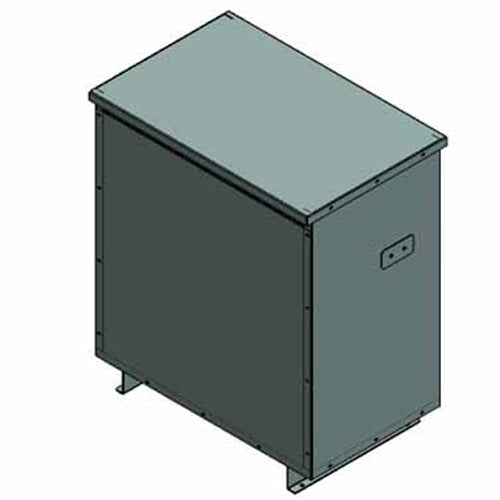

200KVA, Spec No. 200K5S3C7N1T1. Primary 600V Delta, Secondary 380V Wye / 200V, 60Hz, 3 Phase, 3 Coil, Step Down Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 26.6 (Depth) |
| Width (in) | 41.6 |
| Height (in) | 48.1 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 380V Wye |
| Wattage (w) | 200kVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1670 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
