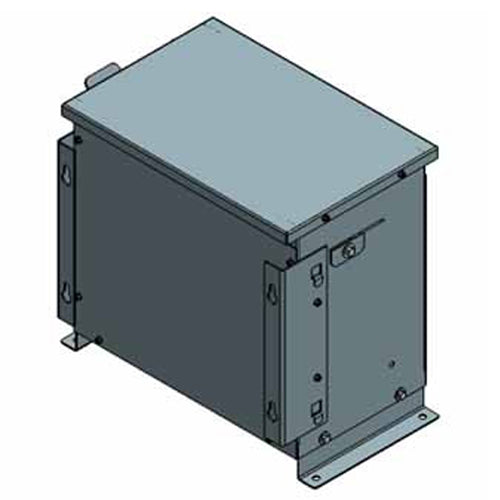

Electric Power 20J3R5C2N1T1, 20KVA, Isolation Type Transformer, 3 Phase, Primary 208V Delta, Secondary 415/240V Wye, Copper
Regular price
$4,495.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 20J3R5C2N1T1. Primary 208V Delta, Secondary 415V Wye / 240V , 60Hz, Three Phase, 3 Coil, Step Up Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Isolation Type Transformer |
| Length (in) | 19.3 (Depth) |
| Width (in) | 29.5 |
| Height (in) | 27.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 415V Wye / 240V |
| Wattage (w) | 20kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 340 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
